Quantum Auto UZ to AR5 Toyota R Series Aisin Transmission Adapter Plate - High-Performance Transmission Conversion Kit for Off-Road & Racing Applications

Product Description

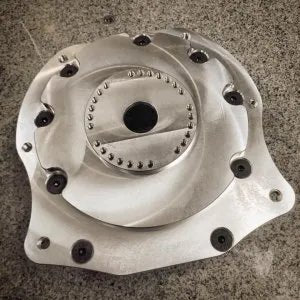

Upgrade your build with our precision-engineered adapter plate, designed to seamlessly connect Toyota R-Series 5-speed manual transmissions to the robust 1UZFE, 2UZ, or 3UZ V8 engines. Manufactured from 1 ¾” thick billet 6061-T6510 aircraft-grade aluminum, this adapter plate is built for reliability and performance.

Complete Kit for a Seamless Swap: This kit includes all necessary hardware and AN fittings for clutch line setup. While clutch lines are not included due to varying application requirements, we can provide custom clutch lines for popular swaps. Pair this adapter plate with a UZ automatic bell-housing, clutch/flywheel combo, and other chassis-specific parts to complete your project. For personalized guidance, reach out with your project details, and we’ll ensure you have everything needed for a perfect fit.

Precision CNC Machining: Built from aircraft-grade aluminum for unparalleled strength and accuracy.

Simplified Fitment: No starter or plate shimming required—our billet CNC design ensures flawless alignment.

Hardened Steel Ring Gears: We use OEM-quality materials for long-term durability, avoiding unreliable aluminum ring gears.

Wide Compatibility: Fits R150, R151, R154, and AR5 GM transmissions, supporting 1UZFE, 2UZ, and 3UZ engines.

Customizable Clutch Options: Designed for SW20 MR-2 Turbo clutches and compatible with various flywheels and clutches.

Compatibility Overview

• Designed for use with AR5 Toyota R-Series Aisin Transmissions.

What You’ll Need:

• Our Flywheel: R-series flywheels are incompatible; choose between our OEM-style budget or lightweight chromoly flywheels.
• UZ Automatic Bellhousing: Required for proper alignment and fitment.
• Clutch/Pressure Plate: Select based on your horsepower goals and application. We stock various high-performance options.
• Clutch Line: Not included, as fitment depends on your chassis (LHD, RHD, or custom swaps). Custom options available upon request.
• Additional Chassis Parts: Some manual conversion components, including a 0.700”–0.750” bore master cylinder, may be required depending on your setup.


Why Choose This Kit?

• Proven performance: Decades of reliability and ongoing upgrades for UZ engines.
• Quality materials: No compromises on hardware, ensuring robust performance.
• Customer-first design: Easy installation with no guesswork or hidden modifications.
• Superior support: Expert guidance and service before, during, and after your purchase.

Optional Upgrades for Convenience

• Bleeder Line Kit: Relocate the bleeder fitting outside the bellhousing for hassle-free maintenance. Options include 10” or 36” lines to fit your setup perfectly.
• Clutch Hydraulic Line: Typically 36” with a 90° fitting on one end and straight fitting on the other. Custom lengths available upon request.

This adapter plate is the ultimate solution for pairing UZ engines with AR5 R-Series Toyota transmissions. Whether you’re building for performance, reliability, or both, this kit ensures a seamless installation and exceptional results. Contact us today to discuss your build and take your project to the next level!
