Product Description

If you have a Toyota W58 or R154 transmission and need a shifter or want to upgrade to a short throw, Xcessive Manufacturing has you covered!

Materials & Construction

Precision CNC Machining – All shifters are CNC-turned from solid stainless steel, ensuring durability and strength.

TIG-Welded Pivot Ball – Fully welded for maximum rigidity and long-lasting performance.

One-Piece Machined Tips – The ball tips are machined directly onto the 5/8” shaft for seamless integration.

Toyota-Compatible Threads – Features 12x1.25mm threads at 18mm length, allowing compatibility with OEM and aftermarket shift knobs.

Billet Anodized Top Cap – Replaces the factory spring cap system with an upper pressure bushing and full spherical shifter ball for smooth operation.

One-Piece Molded Base (Short Throw) – Includes stainless alignment pins, eliminating moving parts that could wear out or cause issues.

Injection-Molded Tip Bushing – Provides a tight, precise fit for consistent performance.

Factory-Matched Height – Designed to be 11” tall from the top of the shifter housing, ensuring easy fitment in most applications.

Standard Throw vs. Short Throw

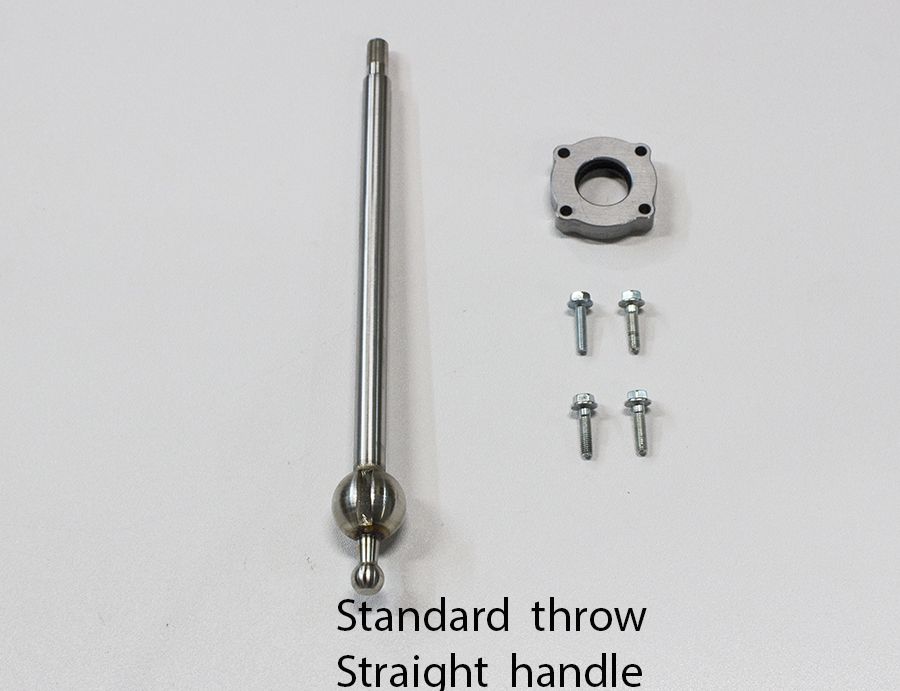

Standard Throw Shifter:

• 8:1 ratio – Same as stock Toyota shifters.
• Smooth & Precise – Easier gear selection with a familiar feel.

Shift Lengths:

• 1st to 2nd: ~5 ¾” front to back
• 2nd to 3rd: ~1 ½” sideways

Short Throw Shifter:

• 5.5:1 ratio – Reduces shift throw by 30% for quicker gear changes.
• Tighter, Sportier Feel – Requires more precise movements.

Shift Lengths:

• 1st to 2nd: ~4” front to back
• 2nd to 3rd: ~1” sideways

Things to Check Before Installation

• The standard throw shifter retains the factory position in the housing and requires a good base bushing for proper fitment.
• A worn or missing base bushing can cause excessive shifter movement—replace it if unsure!
• Xcessive Manufacturing offers affordable base bushings to ensure proper shifter function and a solid feel.

Upgrade your Toyota W58 or R154 transmission with a high-performance shifter from Xcessive Manufacturing for a smoother, more responsive driving experience!
